Humidifier DeAir.HM-30S

SPECIFICATIONS
  • Steam capacity
: 30 kg/h
  • Power supply
380V/3Ph/50Hz
  • Power consumption
: 24.3 kW
  • Dimensions (W x D x H)
: 525 x 360 x 750 mm
  • Weight
: 16 kg
49.308.500 VNĐ 49.990.000 VNĐ - 1.4%
Quantity
Products of DEAIR . JSC

DeAir Industrial Humidifier. HM-30S - Comprehensive humidification solution for manufacturing enterprises



DeAir Humidifier. HM-30S
DeAir Humidifier. HM-30S



DeAir industrial humidifier. HM-30S is an ideal device for maintaining stable humidity in production, construction and greenhouse environments, especially when air humidity drops below 40%. Model DeAir.HM-30S helps create an optimal working and storage environment, improving productivity and product quality.

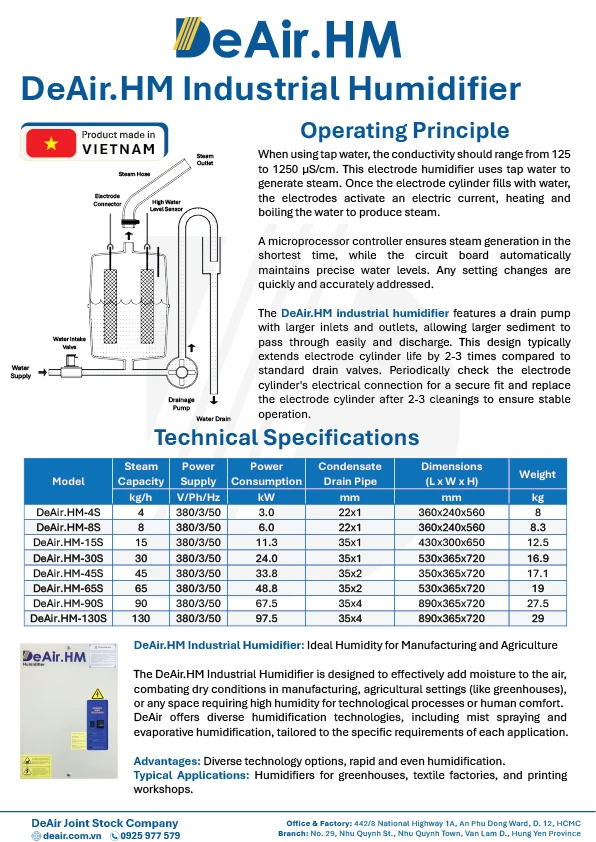

1. Operating principle of DeAir. HM-30S Humidifier



Details of the DeAir humidifier. HM-30S
Details of the DeAir humidifier. HM-30S

The DeAir humidifier. HM-30S uses the principle of electrode humidification, an effective and safe solution. When tap water (with recommended conductivity of 125 - 150 µs/cm) is supplied, the electrodes activate the current, heating and boiling the water to create moisture.

The intelligent microprocessor control of the DeAir. HM-30S humidifier ensures that the humidification process is fast and the water level is maintained accurately. The machine is capable of flexibly handling any setting changes. The special feature of DeAir.HM-30S is the drain pump with large inlet and outlet, which effectively removes dirt, prolonging the life of the electrode bar 2-3 times compared to conventional drain valves.

To ensure stable performance of DeAir.HM-30S humidifier, it is necessary to periodically check the electrode connectors and replace the electrode bar after 2-3 cleanings.



2. Outstanding advantages of DeAir Industrial Humidifier. HM-30S



DeAir Humidifier. HM-30S has a capacity of 30L/hour
DeAir Humidifier. HM-30S has a capacity of 30L/hour



  • Impressurizing performance: With a humidifying capacity of up to 30kg/h, DeAir humidifier. HM-30S meets the humidification needs of many different spaces and production scales.
  • Compact, flexible design: Dimensions of only 525 x 360 x 750 mm and weight of 16kg make DeAir.HM-30S easy to install, move and integrate into existing systems.
  • Perfect integration with AHU: DeAir humidifier. HM-30S can be flexibly integrated with the AHU (Air Handling Unit) system to provide a comprehensive humidification solution for the central air conditioning system.
  • Optimal energy saving: Power consumption of only 24.3kW helps businesses significantly reduce operating costs.
  • Safe and reliable: The principle of humidification by electrodes ensures absolute safety and pure steam thanks to the automatic cleaning function.
  • Smart, automated operation: Central processor Automatically controls power, water supply and wastewater discharge, optimizing efficiency and minimizing operator intervention.
  • Easy to use and maintain: DeAir humidifier. HM-30S is simply designed, easy to install, operate and perform periodic maintenance.
  • High durability: Manufactured on an advanced technological line, DeAir humidifier. HM-30S ensures stable operation and long life.



3. Instructions for installing the DeAir humidifier. HM-30S



The installation process of the DeAir humidifier. HM-30S must be performed by a qualified technician. Always use the genuine accessories included and comply with the safety distances. Ensure sufficient space for repair and maintenance, and choose an installation location that is convenient for dismantling.



For optimal performance, the distance between the DeAir humidifier. HM-30S and the steam distributor should be as short as possible (less than 2 meters, maximum 3 meters). If a longer steam pipe is required, please contact the supplier. It is recommended to use an open drain funnel and install a water filter on the water inlet pipe.



Instructions for installing the DeAir humidifier. HM-30S
Instructions for installing the DeAir humidifier. HM-30S





4. Diverse applications of DeAir humidifier. HM-30S



DeAir humidifier. HM-30S in actual use - 1
DeAir humidifier. HM-30S in actual use - 1





DeAir humidifier. HM-30S in actual use - 2
DeAir humidifier. HM-30S in actual use - 2





  • Preserving agricultural products: Maintaining ideal humidity in cold storage, helping vegetables and fruits stay fresh longer.
  • Balance humidity in industrial production: Especially important in the dry season, helping to improve productivity and product quality in many industries.
  • Optimizing the central air conditioning system (AHU): Adding necessary humidity, creating a comfortable environment roof and protect the health of users.
  • Applications in research and testing: Precise humidity control in microclimate rooms, pharmaceutical laboratories and electrical equipment.
  • Health care: Create ideal humidity for steam rooms, providing a relaxing experience and health benefits.



5. Benefits of choosing DeAir Industrial Humidifier. HM-30S





DeAir staff adjusting the humidifier
DeAir staff adjusting the humidifier



      • Made in Vietnam: Designed and manufactured on request, suitable for the climate conditions and individual needs of each customer.
      • Professional technical services 24/7: A team of experienced engineers is ready to support customers at all times.
      • Periodic maintenance program: Ensures stable operation of DeAir. HM-30S humidifier and prolongs its lifespan.

DeAir. HM-30S industrial humidifier -The perfect, reliable dehumidification solution for your industrial space. Contact us now for the best advice and quote!

Discover real projects that have effectively applied our dehumidifiers.

To better understand the product and other applications, please watch more useful videos on DeAir's Youtube channel
