In the manufacturing, repair, and maintenance of industrial electrical equipment (motors, transformers, inductors...), coil drying is a vital process. This procedure directly determines the insulation resistance index and the equipment's lifespan. If temperature control is poor, the insulation enamel will be destroyed or the varnish solvent will not fully evaporate, leaving unpredictable consequences such as electrical leakage and instant fire upon operation. Discover the specialized drying solution from DeAir now.

1. The Importance of Drying Electrical Coils in the Industry

During the maintenance or rewinding of stators and transformers, the drying stage plays two inseparable core technical roles:

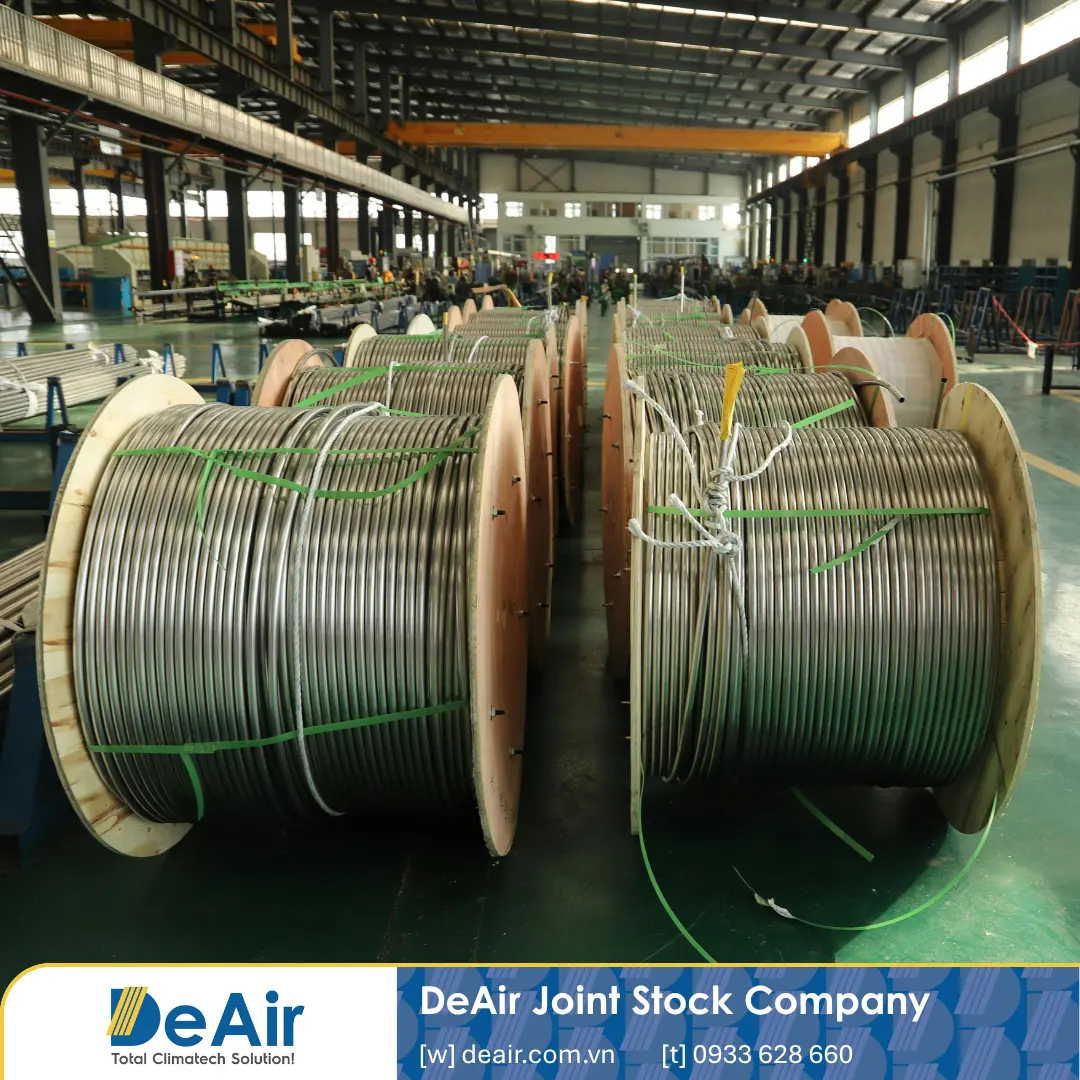

• Dehumidification (Bare Drying): Completely removes accumulated water vapor and moisture within the coil slots (especially for old motors stored for long periods or flooded motors). This helps restore the insulation resistance index (measured by a Megohmmeter) to a safe level before operation or varnish impregnation.

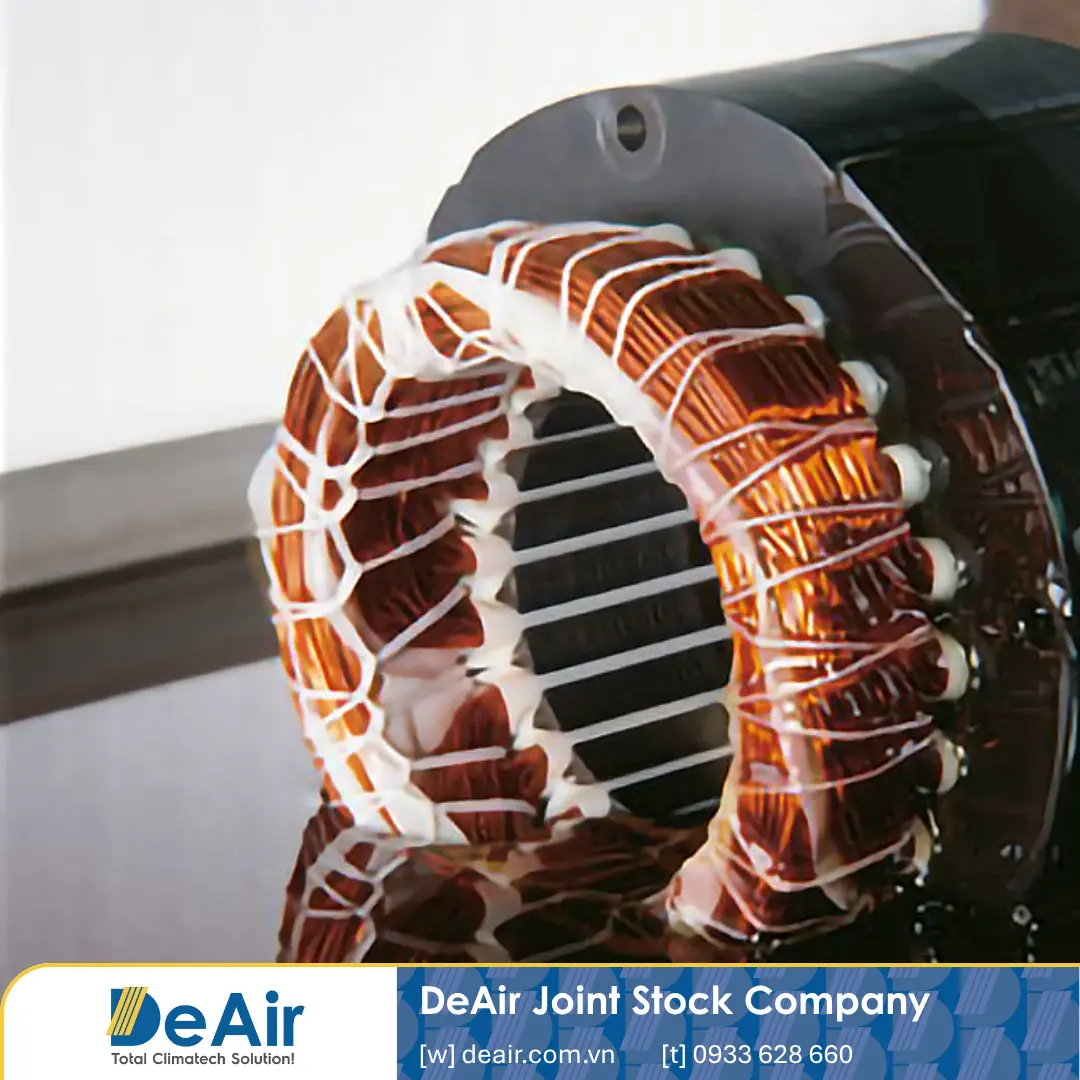

• Insulation Impregnation Curing: After the coils are dipped in insulating paint (Varnish/Resin), they need to be heated so the solvent evaporates and the varnish resin undergoes a hardening reaction (Polymerization). The cured varnish layer creates a solid cohesive block that resists mechanical vibration, prevents wear, and completely electrically isolates the wire turns from each other.

2. Fatal Risks of Outdated Manual Heating Methods

Many small motor rewinding workshops still use primitive methods such as incandescent light bulbs, heat guns, or low-quality handmade drying ovens. This leads to fatal "pain points" for the equipment:

• Uneven Heat Distribution: Light bulbs or heat guns only provide localized heating. The outer surface of the coil might be hot enough to burn the insulation enamel, while deep inside the slot core remains damp and the varnish is uncured.
• "Temperature Overshoot" and False Drying: Low-quality drying ovens often experience actual temperatures surging much higher than the set point. Sudden high temperatures cause the surface varnish layer to crust (skin over) instantly, "trapping" all the solvent gas and moisture inside the core. When the motor runs, this liquid solvent heats up, evaporates, and destroys the insulation layer from the inside, causing a short circuit.

3. Daxwell Drying Systems: Optimal Temperature Control for the Electrical Industry

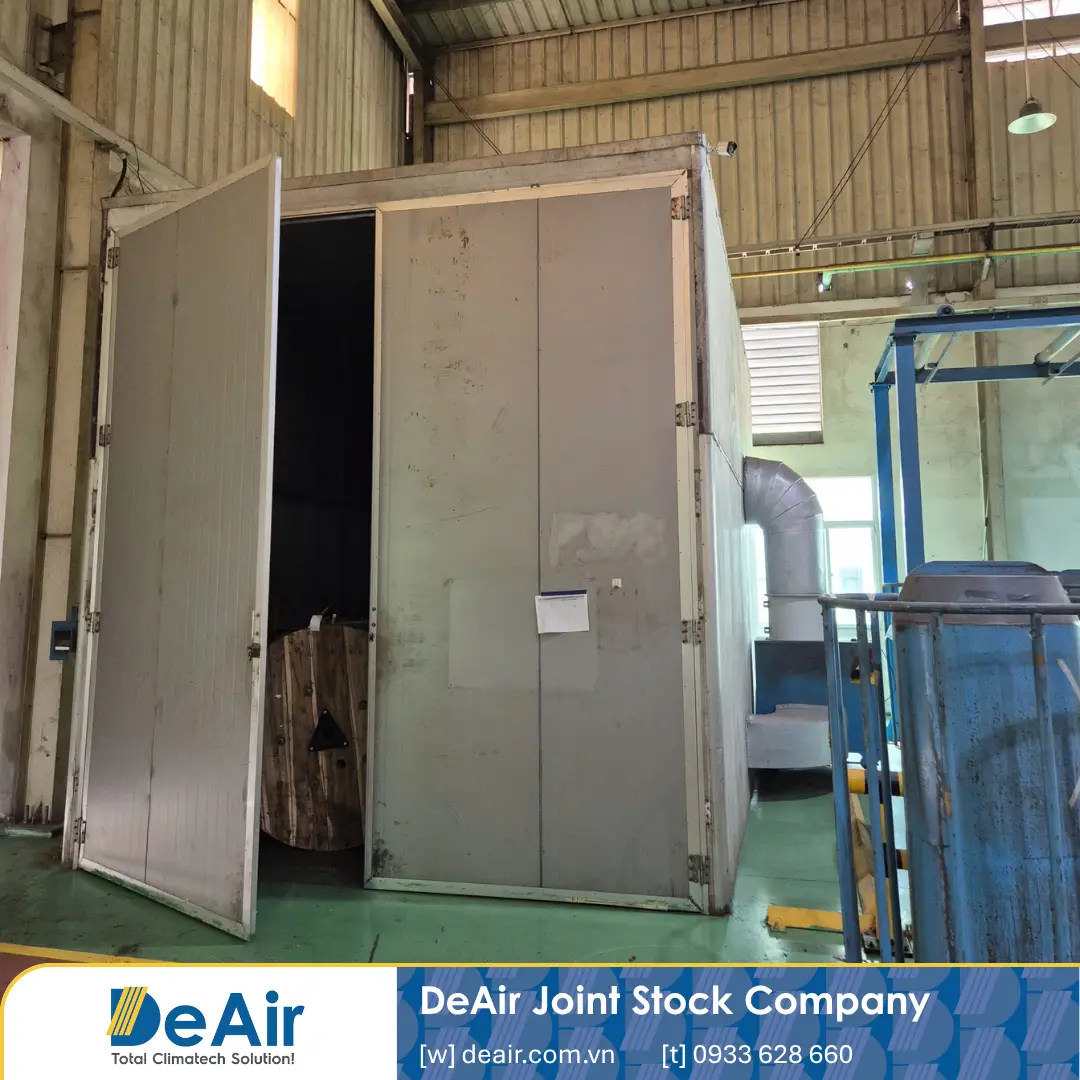

To meet the stringent standards of the electrical industry, investing in a Daxwell industrial heat-pump dryer is a strategic choice for major manufacturing and maintenance plants.

• Aerodynamic Circulating Airflow: A powerful circulating convection fan system creates a continuously flowing heat stream, penetrating the smallest crevices of the stator. This ensures the coil is heated evenly from the core to the surface, preventing localized thermal shock.
• Static Temperature Control (PID): A smart PLC controller measures and accurately supplies heat according to the specific temperature ranges required by insulation classes (Class B, Class F, Class H).
• Safe Solvent Exhaust System: Evaporating varnish contains large amounts of flammable solvents. Daxwell dryers are designed with an automatic forced exhaust valve system, safely pushing exhaust gases out, absolutely preventing gas concentrations from reaching explosive levels inside the drying chamber.

4. Decoding the Standard 3-Stage Varnish Curing Process with Daxwell

For a perfect insulation layer, engineers will pre-program a standard 3-stage automated "Temperature Curve" on the Daxwell machine's HMI screen:

5. The Quality & Safety Equation for Production Workshops

Choosing the Daxwell drying system elevates the professional capacity of the entire factory:

• Passing Rigorous QA/QC Tests: Motors dried by Daxwell yield absolute standard insulation resistance test results (using a Megger meter), entirely eliminating the risk of electrical discharge and prolonging equipment life.
• Automation & Reduced Skill Dependency: Engineers can store different "Temperature Profiles" for various stator types (large/small capacity, using different varnishes). Operators simply press a button to select a program, and the system automatically runs and stops without needing constant temperature monitoring.
• Protecting the Working Environment: For professional electronics manufacturing plants, alongside maintaining dryness, treating workshop air is also crucial. It is possible to integrate a DeAir industrial humidifier to prevent electrostatic discharge (ESD) in assembly areas outside the drying chamber, creating a complete air control ecosystem.
