Isothermal Dehumidifier DeAir.CRE-300CL

SPECIFICATION
  • Temperature range
: (5 - 40)°C
  • Airflow rate
: 3,000 CMH
  • Dehumidity capacity
: 300 kg/day
  • Nominal conditions
: 30°C/ 70%
  • Power consumption
: 5.85 kW
  • Power supply
: 380V/3 pha/50Hz
  • Weight
: 150 kg
  • Gas type
: R410A
  • Dimensions (L x W x H)
: 1,100 x 900 x 700 mm
  • Noise
: 59 dBA
98.236.800 VNĐ 105.000.000 VNĐ - 6.4%
Quantity
Products of DEAIR . JSC

DeAir.CRE-300CL Isothermal Dehumidifier: Humidity Control and Stable Temperature Maintenance for Specialized Applications





In specialized applications such as cold storage, freezer storage, pharmaceutical preparation rooms, laboratories, and clean rooms, precise humidity control without temperature fluctuations is key to protecting product quality, ensuring processes, and saving energy. Understanding this, DeAir has researched and produced the DeAir.CRE-300CL floor-mounted isothermal dehumidifier, providing an effective humidity control solution while maintaining a stable temperature in the room.

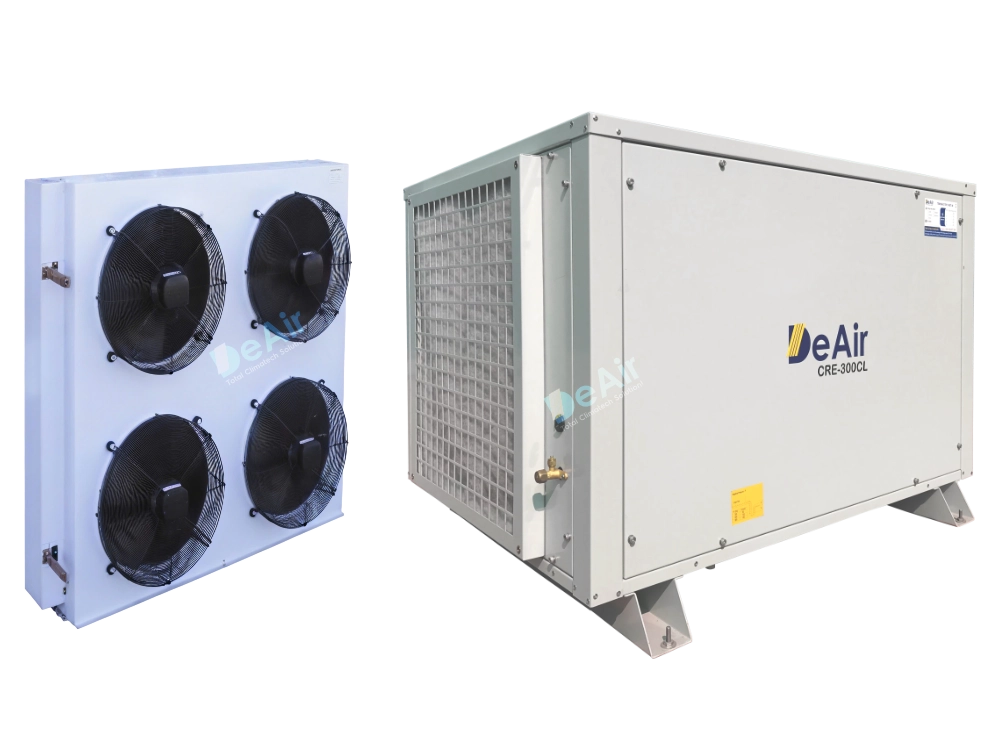

DeAir.CRE-300CL Isothermal Dehumidifier
DeAir.CRE-300CL Isothermal Dehumidifier





1. Isothermal Dehumidification Working Principle:





DeAir.CRE-300CL Isothermal Dehumidifier Working Principle
DeAir.CRE-300CL Isothermal Dehumidifier Working Principle





DeAir.CRE-300CL dehumidifier operates based on the unique isothermal dehumidification principle, combining cold compression technology and advanced heat exchange condenser:

  • Dehumidification: Humid air from the room is drawn into the machine and passes through the evaporator. Here, the water vapor condenses into water due to the temperature dropping below the dew point.
  • Heating: Dry air after dehumidification will be led through the condenser to be heated before being blown back into the room. This process helps to compensate for the amount of heat lost during the cooling process, thereby maintaining a stable room temperature and avoiding a feeling of cold and dryness.





heat dissipation module of DeAir.CRE-300CL dehumidifier
heat dissipation module of DeAir.CRE-300CL dehumidifier



Special feature: DeAir.CRE-300CL is equipped with an additional smart heat dissipation module, allowing users to flexibly choose the mode to increase or decrease the room temperature slightly depending on the specific requirements of each application.

  • Temperature maintenance mode: The heat exchange condenser will operate to balance the temperature.
  • Slight temperature increase mode: The heat dissipation condenser will not operate, the heat from the refrigerant will be partially transferred to the room.
  • Temperature reduction mode: The heat-dissipating condenser will operate to discharge heat to the outside environment, helping to maintain a stable or slightly reduced temperature.





2. Main structure



The DeAir.CRE-300CL isothermal dehumidifier consists of two main parts:

  • Moisture separation part: Includes compressor, evaporator, condenser(heat exchanger), throttle cable, air filter and working fan.
  • Thermal control section: Includes condenser (heat dissipation), heat dissipation fan, liquid separator, gas filter, and high/low gas pressure sensor system.



3. Installation instructions

To ensure the machine operates efficiently and safely, the following installation instructions must be followed:

  • Pipe connection diagram: Follow the air duct connection diagram (if any) to ensure proper air circulation.
  • Electrical connection diagram: Ensure a stable power source within the allowable voltage range (± 5%) according to the instructions manufacturer.
  • Drain pipe installation diagram: Install the drain pipe with a minimum slope of 2% to allow condensation to drain easily, avoiding blockage and overflow into the fan compartment.

Please refer to the detailed installation instructions that come with the product.



4. Applications

With the ability to simultaneously control humidity and stable temperature, the DeAir.CRE-300CL isothermal dehumidifier is the ideal solution for the following applications:

  • Cold storage, frozen storage: Maintain stable humidity and temperature to preserve the quality of goods.
  • Pharmaceutical and vaccine storage: Ensure strict storage conditions according to standards.
  • Laboratory, clean room: Control humidity and temperature precisely to ensure research and production environment.
  • Food production and preservation: Prevent mold, bacteria and maintain product quality.
  • Other applications that require precise humidity control and stable temperature maintenance.



5. Benefits of choosing DeAir



  • Made in Vietnam: Products are designed and manufactured on demand, meeting the specific climate and individual needs of each customer.
  • 24/7 technical service: A team of experienced engineers is ready to provide quick and professional technical support.
  • Periodic maintenance program: Ensures stable machine operation, optimizes performance and prolongs life longevity.
  • Comprehensive solution: DeAir provides consulting, design and installation of dehumidification systems suitable for each need.



The DeAir.CRE-300CL isothermal dehumidifier is an advanced solution, providing precise humidity control and maintaining stable temperature, meeting the strict requirements in many specialized industrial applications.



Discover real projects that have effectively applied our dehumidifiers.

To better understand the product and other applications, please watch more useful videos on DeAir's Youtube channel

Contact DeAir now to receive the best quote and advice on designing the optimal dehumidification system for your project.



Contact us now for the best prices !

Office & Factory: 442/8 National Highway 1A, An Phu Dong Ward, District 12, HCMC

Hotline: 0925 977 579

Email: deair@deair.com.vn

Contact us now for the best prices !
Related products

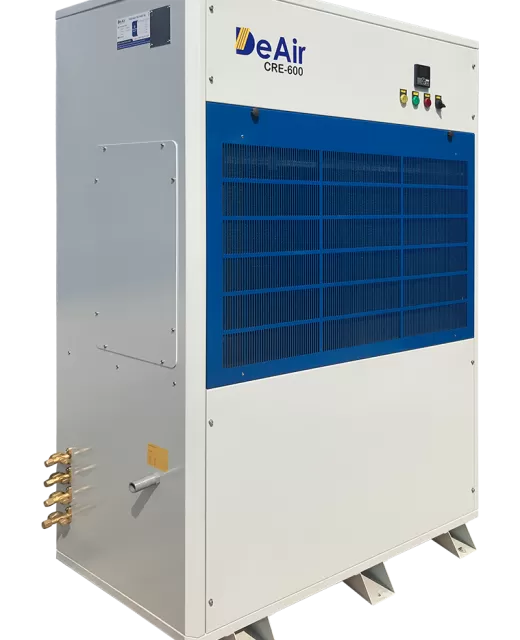

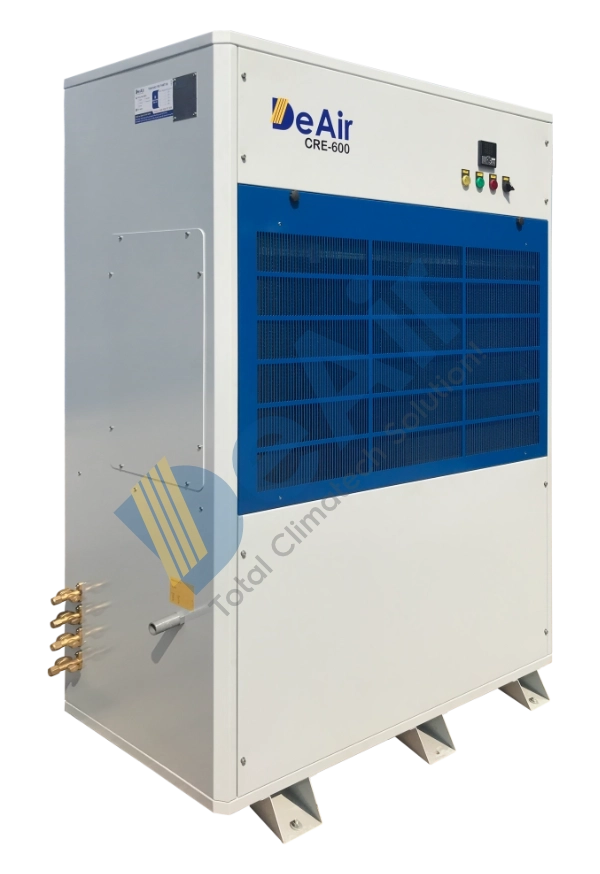

Isothermal Dehumidifier DeAir.CRE-600
