Dehumidification Project at Pearl Global Warehouse: Applying the DeAir.RE-600H Heat-Pump Dryer

The Story of Humidity Control at Pearl Global Warehouse

• 💡 Executive Summary
• 1. The "Invisible Enemy" in Warehouses: High Humidity
• 2. DeAir's Comprehensive Solution: The DeAir.RE-600H Heat-Pump Dryer
• 3. Real-World Application at Pearl Global Warehouse
• 4. Achieved Results After Installation
• 5. Frequently Asked Questions (FAQ)

• Client: Pearl Global – A leading import-export and garment manufacturing company.
• The Problem: High warehouse humidity (over 70% RH) during the rainy season caused carton mold, structural degradation, and damage to apparel and footwear.
• The Solution: DeAir supplied the DeAir.RE-600H heat-pump dryer with a capacity of 600 kg/day.
• The Benefits:
  • Stable humidity control at 45-55% RH.
  • Prevented carton mold and protected export goods.
  • Saved 40% on electricity compared to conventional condensation units.
  • Stable operation at 15-60°C, combining both dehumidification and drying functions.
  • ROI: Full payback within 12-14 months.

⚠️ THE DEVASTATING EFFECTS OF HIGH HUMIDITY

• Warehouse Humidity: Fluctuated between 70-85% RH during the rainy season.
• Carton Degradation: Cardboard absorbed moisture, leading to mold, peeling, and loss of structural integrity.
• Product Damage: Apparel and footwear developed mold and musty odors.
• Defect Rate: Increased by 15-20%, causing significant financial losses.
• Reputational Risk: Customer complaints and higher return rates threatened business partnerships.

🔧 KEY FEATURES OF THE DEAIR.RE-600H

• Dehumidification Capacity: 600 kg/day @ 30°C/70% RH.
• Airflow: 6,000 CMH.
• Operating Temperature: 15-60°C (wider range than standard units).
• Dual Functionality: Dehumidification and drying (with optional supplementary electric heaters).
• Energy Efficiency: Saves 40% on electricity compared to conventional condensation dehumidifiers thanks to Heat-Pump technology.
• Optional BMS: Can be integrated with a Building Management System for remote monitoring, if required by the enterprise.

✅ SUPERIOR ADVANTAGES

• Heat-Pump Technology: Reuses heat from the condensation process to reheat the dehumidified air, saving 40% on energy.
• High-Temperature Operation: Stable performance from 15-60°C, perfect for both dehumidifying and drying cycles.
• Versatility: One machine, two functions – dehumidify when needed, dry when required.
• Low-Temperature Stability: No frost buildup issues common in standard units.
• Minimal Ambient Temperature Shift: The exhausted air is slightly warmed, preventing the warehouse from becoming uncomfortably cold.

🔧 INSTALLATION SYSTEM

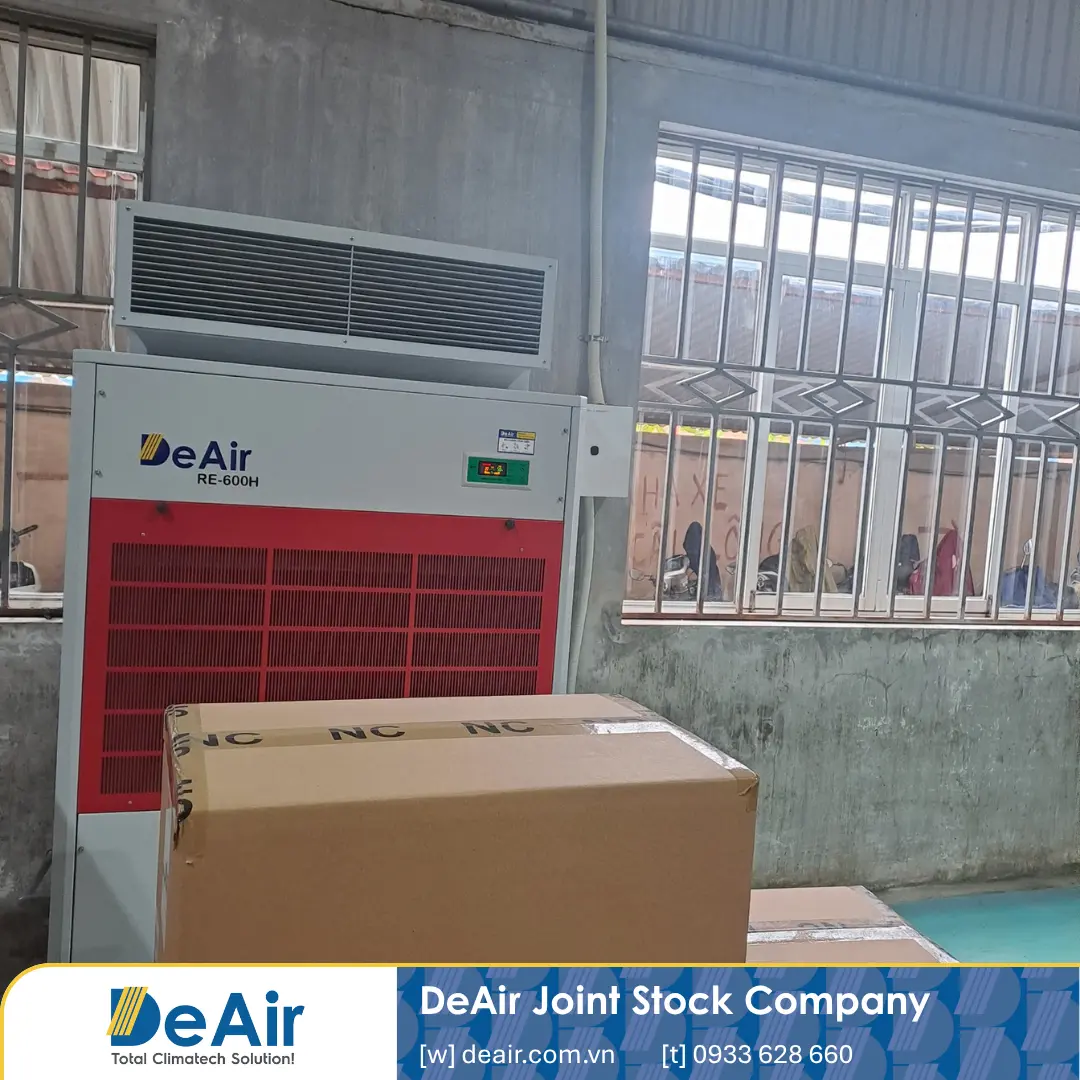

• 02 x DeAir.RE-600H heat-pump dryer with a 600 kg/day capacity.
• Ducting distribution system: Ensures dry air is evenly distributed throughout the entire warehouse.
• Smart control panel: Programmed for automatic operation, maintaining a target humidity of 45-55% RH.
• Optional BMS integration: Available for remote monitoring and threshold alerts, based on enterprise needs.

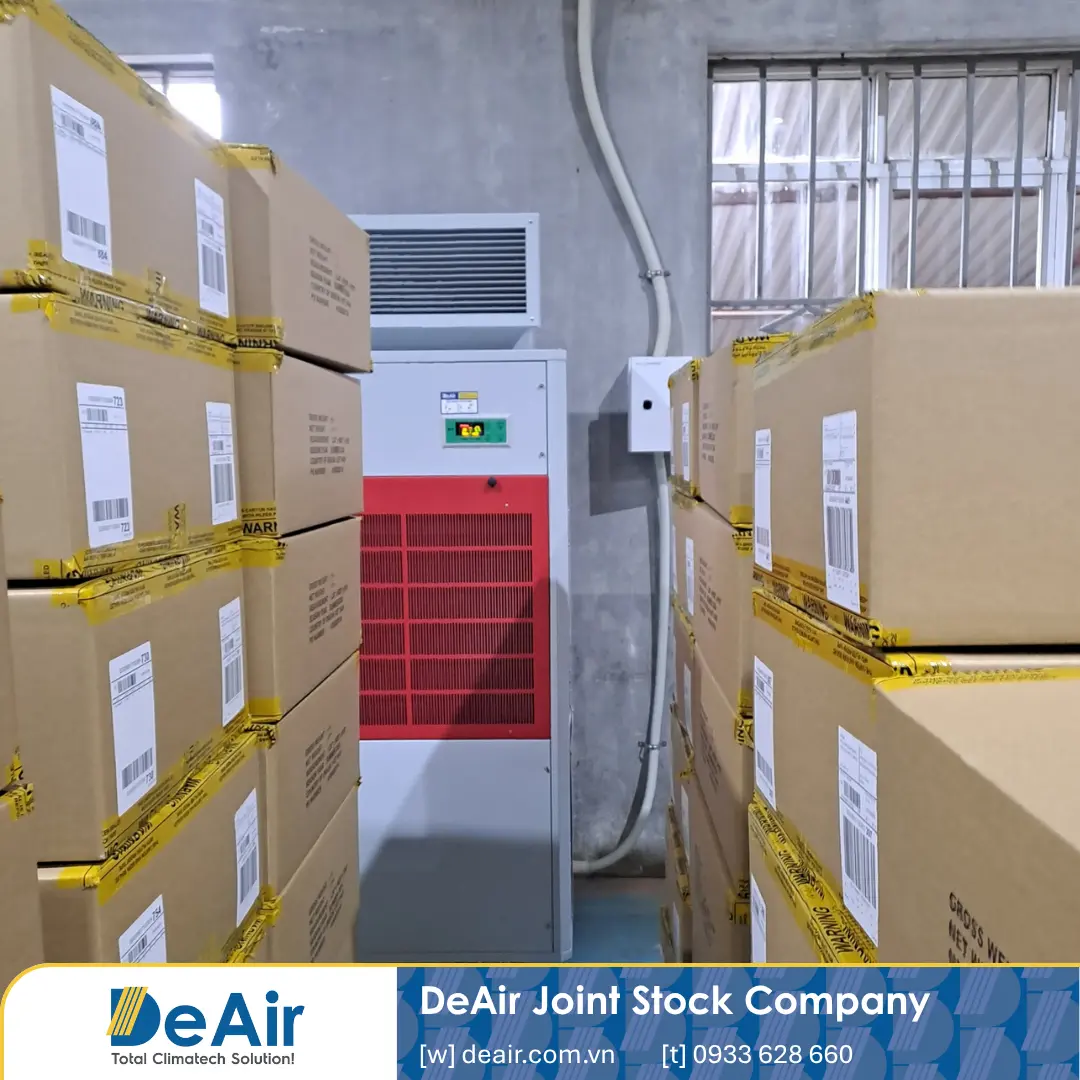

• Maintained Humidity: Stable at 45-55% RH (fully compliant).
• Warehouse Temperature: 24-28°C (stable, not overly cold).
• Defect Rate: Dropped from 15-20% to under 2%.
• Carton Moisture Content: Reduced by 30-40% compared to previous levels.
• Storage Duration: Significantly extended without mold concerns.

💰 ECONOMIC BENEFITS OF HUMIDITY CONTROL

"After installing the DeAir.RE-600H heat-pump dryer, our warehouse environment completely transformed. Humidity is stably controlled at 45-55% RH, cartons no longer mold or peel, and our goods are preserved much better. Most notably, the defect rate dropped from 15-20% to under 2%, saving us 500-700 million VND annually. The machine operates very quietly, saves electricity, and the DeAir support team has been incredibly dedicated."

— Representative of Pearl Global

Q1: Can the DeAir.RE-600H operate effectively at low temperatures?

Yes, the DeAir.RE-600H operates efficiently within a temperature range of 15-60°C. Notably, its Heat-Pump technology ensures stable dehumidification at lower temperatures without the frost buildup issues common in standard condensation units.

Q2: Can this machine be used to dry goods?

Yes. The DeAir.RE-600H (previously known as the heat-resistant dehumidifier) integrates both dehumidification and drying functions. With optional supplementary electric heaters, it can dry goods at temperatures up to 60°C, making it highly suitable for warehouses that need to treat moisture before packaging or rapidly dry specific goods.

Q3: What are the benefits of the DeAir.RE-600H over traditional condensation dehumidifiers?

The DeAir.RE-600H is superior because it:

• Saves 40% on electricity thanks to Heat-Pump technology.
• Operates stably across a wide temperature range (15-60°C).
• Integrates both dehumidification and drying capabilities.
• Offers optional BMS integration for 24/7 monitoring.
• Does not overcool the surrounding environment.

Q4: What is the Return on Investment (ROI) period for the DeAir.RE-600H?

Typically, the ROI is 12-14 months, driven by:

• Reducing the defect rate from 15-20% to under 2%.
• Saving 500-700 million VND/year from avoided product losses.
• A 40% reduction in electricity costs.
• Enhanced brand reputation and fewer customer complaints.

Q5: Does DeAir provide scheduled maintenance and calibration services?

Yes, DeAir provides scheduled maintenance every 6 months, which includes:

• Calibration of humidity sensors.
• Cleaning of evaporator and condenser coils.
• Inspection of electrical systems and refrigerant levels.
• 24/7 technical support.
• A 24-month warranty compliant with ISO 9001:2015 standards.

Q6: Can the machine be integrated with a BMS?

Yes, the DeAir.RE-600H offers optional integration with a Building Management System (BMS) based on enterprise requirements. This system allows for:

• Remote monitoring of humidity and temperature via phone or computer.
• Instant alerts when thresholds are exceeded.
• Continuous 24/7 data logging.
• Remote machine control.
• Automated reporting for management.

Warehouse Dehumidification Solutions - Efficient, Effective, Sustainable

Don't let high humidity degrade your product quality and inflate your defect rates. DeAir is ready to partner with you, providing the DeAir.RE-600H heat-pump dryer solution that saves 40% on electricity and pays for itself in just 12-14 months.

Is your enterprise looking for an optimal humidity control solution for your warehouse?
